G2 GENESIS
G2 GENESIS FEATURES:
| Model | G2 48 | G2 510 | G2 512 |
|---|---|---|---|
| Table size | 2500 x 1300mm | 3100 x 1600mm | 3700 x 1600mm |
| Max speed x/y/z | 60/60/30 m/min | 60/60/30 m/min | 60/60/30 m/mi |
| Main spindle | 12hp | 12hp | 12hp |
| Max rotation speed | 24000rpm | 24000rpm | 24000rpm |
| Vertical drills | 5 x 5 | 5 x 5 | 5 x 5 |
| Rotation speed | 4500rpm | 4500rpm | 4500rpm |
| Tool changer | 6 or 8 position rack | 6 or 8 position rack | 6 or 8 position rack |
| Suction flow rate | 160m3/h | 160m3/h | 160m3/h |
| Dust extraction | Φ200mm × 2 | Φ200mm × 2 | Φ200mm × 2 |
| Overall size | 3420 x 5600 x 2500mm | 4600 x 6500 x 2500mm | 4600 x 7100 x 2500mm |
| Net weight | 2700kg | 3100kg | 3700kg |

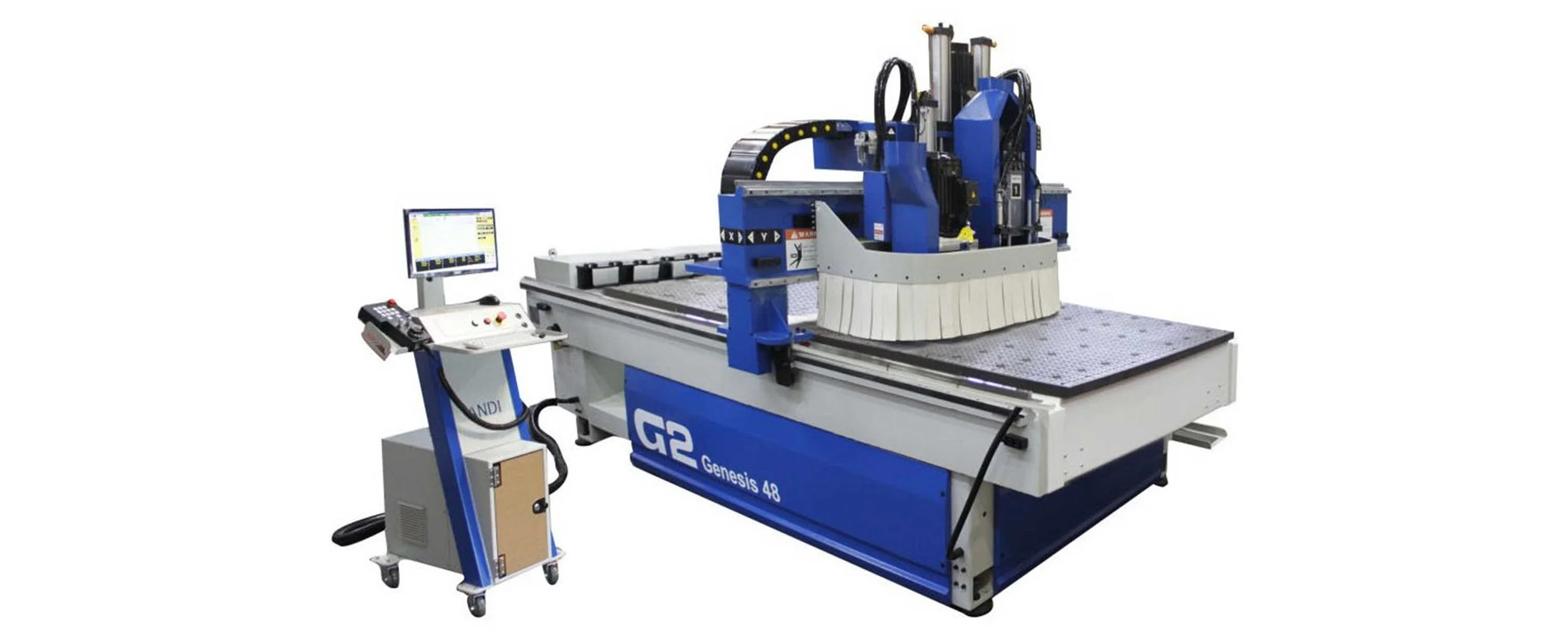

The G2 is a 3 axis cnc router designed for production needs in mind.
Standard 12hp main spindle with rotation of up to 24000rpms.
Drill block size standard 5 x 5
Standard features that separate the G2: meehanite cast iron table, fixed tool touch off device, push off bar, and blast gate for dust extraction.
Rack style tool changer with 6 or 8 positions.
Optional label printing.
Optional off load table.
